Navigating the Offline Projects app
Offline Projects is a component in ACL for Windows that allows you to continue to work with the Projects app while disconnected from Diligent One and access entire sections from projects offline.
You can use this topic to learn about the key interface areas that make up Offline Projects.

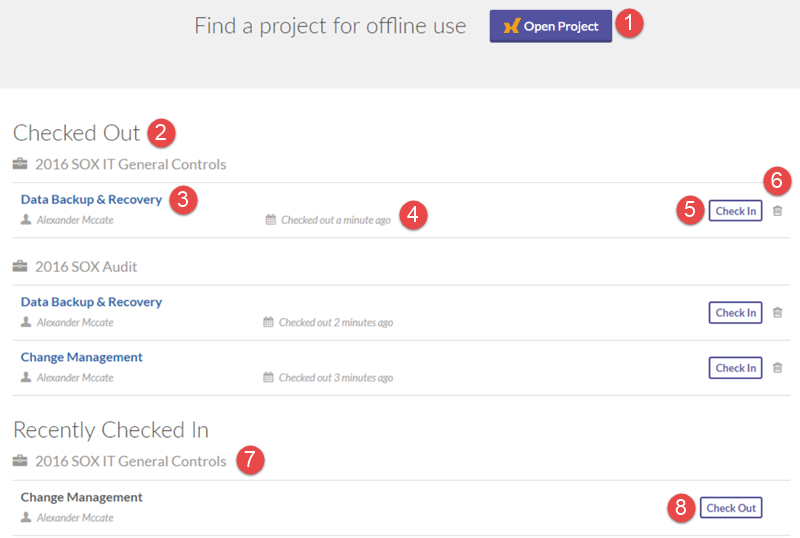

Home page
The home page displays a list of sections currently or recently checked out under corresponding projects. You can use the home page to find a project to work with offline and check in and out sections from projects.
When you first open Offline Projects, the only option available is Open Project. You need to check out sections from projects in order to view a list of sections currently or recently checked out.
Overview
Components
| Number | Component | Description |
|---|---|---|
| 1 | Open Project | Access a project to work with offline. |
| 2 | Checked Out |
View a list of sections that are currently checked out. The section name, project name, individual assigned to the section, and date when the section was checked out displays. |
| 3 | Open section | Drill into a section to work with offline. |
| 4 | Timestamp | Displays the time when the section was checked out. |
| 5 | Check In | Sync a section back to the Projects app to share information with other teammates. |
| 6 | Discard section |
Discard an offline section in Offline Projects. Once the section is discarded, you cannot restore the changes made to the section in Offline Projects. The online section in the Projects app will not be discarded. |
| 7 | Recently Checked In |
Access a list of sections that have recently been checked in. You can use this area to easily check out a section without having to search for it. The section name, project name, individual assigned to the section, and date when the section was checked out displays. |
| 8 | Check Out |
Download a section to your local machine to work with offline. Checking out a section locks the section into read-only mode in the Projects app and prevents other users from editing information. |

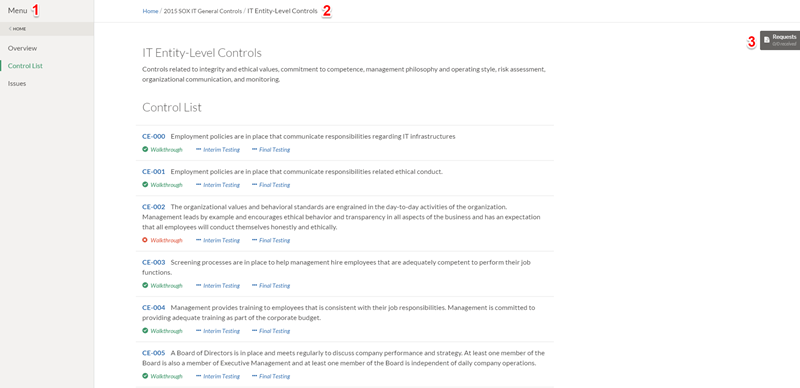

Control List page
Once you have opened a section, the Control List page displays. The Control List page displays all of the controls within the section, and allows you drill into specific controls to view or modify, as necessary.
Overview
Note
- Interface terms are customizable, and fields and tabs are configurable. In your instance of Diligent One, some terms, fields, and tabs may be different.
- If a required field is left blank, you will see a warning message: This field is required. Some custom fields may have default values.
Components
| Number | Component | Description |
|---|---|---|
| 1 | Menu |
Allows you to access the home page, section Overview page, Control List page, and Issues pages. |
| 2 | Navigation links | Allows you to return to a specific page. |
| 3 | Request side tab | Allows you to access all open and received requests within the section. |

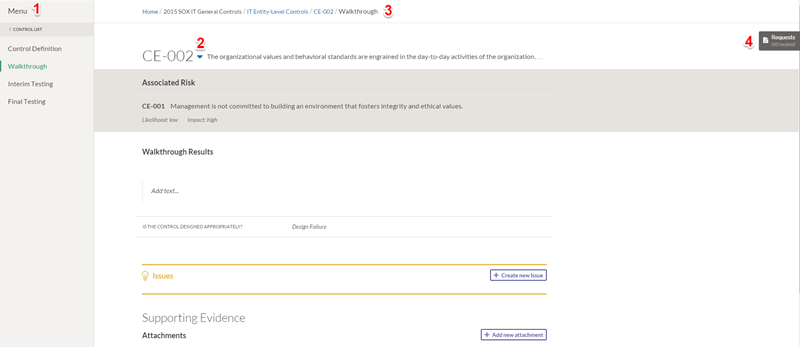

Control page
Once you have drilled into a specific Control, (either by clicking the Control Reference Number or specific Walkthrough or Testing phase from the Control List page), the Control page opens.
Overview
Note
- Interface terms are customizable, and fields and tabs are configurable. In your instance of Diligent One, some terms, fields, and tabs may be different.
- If a required field is left blank, you will see a warning message: This field is required. Some custom fields may have default values.
Components
| Number | Component | Description |
|---|---|---|
| 1 | Menu |
Allows you to access the Control List page and specific Walkthrough or Testing phases. |
| 2 | Control switcher |
Allows you to quickly switch between different Controls, without having to go back to the Control List page each time you need to view or modify a Control. |
| 3 | Navigation links | Allow you to return to a specific page. |
| 4 | Requests side tab | Allows you to access the requests related to a specific Control. |
